10.1″ G3BNG Resistive

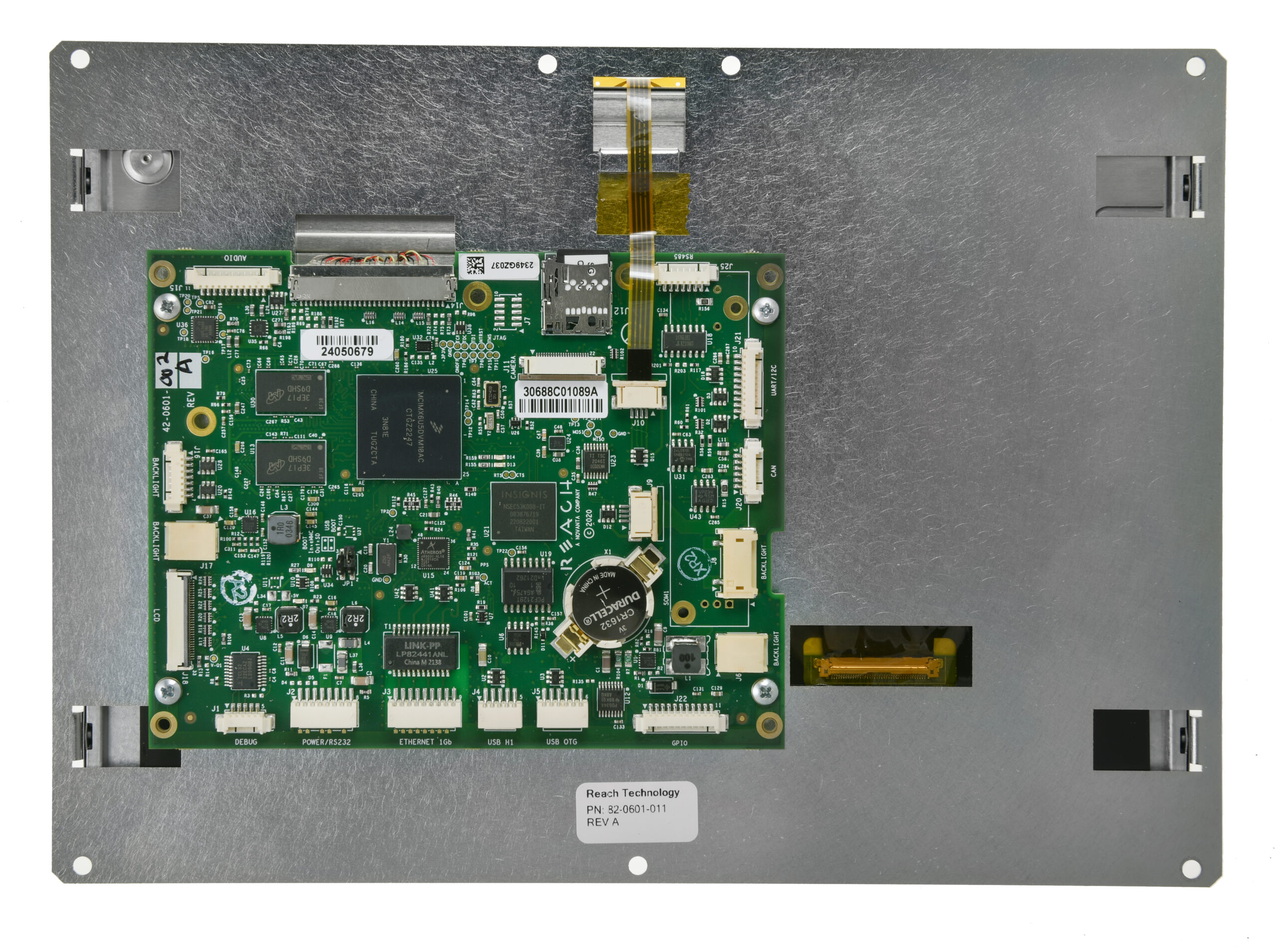

G3BNG Controller

• Processor: NXP i.MX 6DualLite, 1.0GHz Dual-Core Arm Cortex-A9 processors including hardware video decoder and 3D graphics engine. Processor clock 792MHz.
• Storage: 8GB eMMC. MicroSD flash card with push-push connector.
• RAM: 2GB DDR3 DRAM

Software Framework and Tools

Target

• Embedded Linux with LTS kernel 5.4 and Qt 5.15.2.
• Choice of UI toolkit: Qt LTS or GTK+.
• Full support for secure web and IIoT interfaces: FireHOL, NGINX, lighttpd, Node.js and Mosquitto.
• Customizable boot splash screen.
• Robust system updates with Mender client.

Host

• SDK including cross compiler and on target debugger.

Development Options

Interfaces

• CAN: CAN bus with transceiver
• USB: USB 2.0 (high speed) host port, USB 2.0 (high speed) On-The-Go (OTG) port
• Networking: 10/100/1000 Ethernet PHY (Note: Maximum measured performance is 430 Mbps in an optimized environment) and WiFi/Bluetooth via USB dongle.
• Serial: RS-232, RS-422/RS-485, 3.3V CMOS serial port.
• Additional I/O: I2C port, 8-bit GPIO port 5V tolerant, For SPI or additional I/O, contact us.

Features

• Real-Time Clock: With 5-year battery backup.
• Audio: Codec with 1-watt audio amplifier.

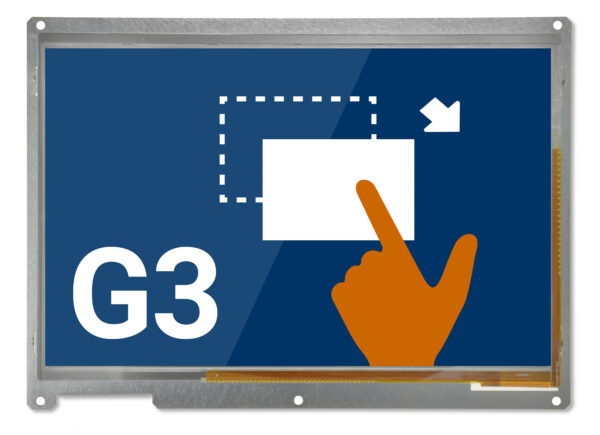

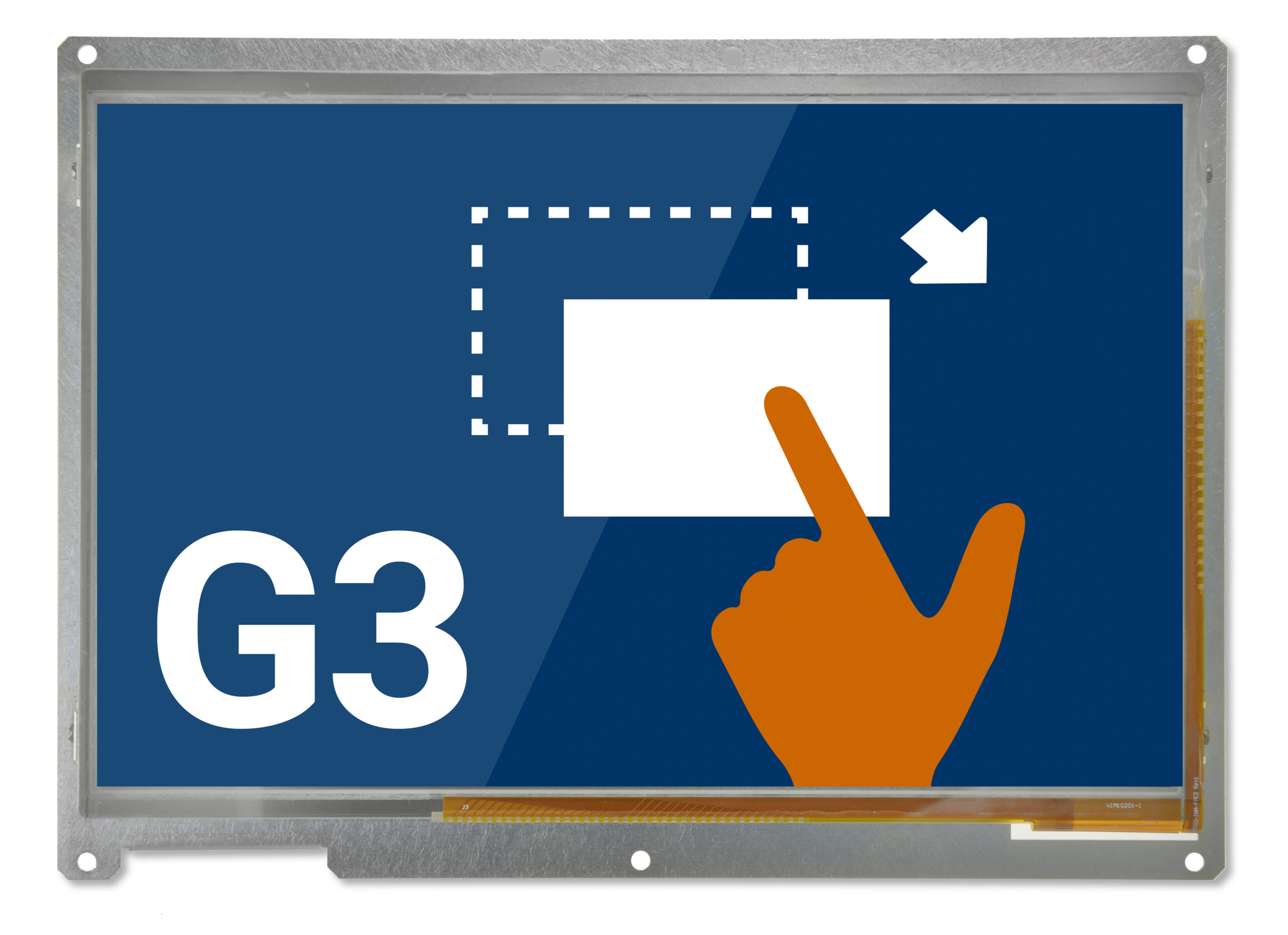

LCD Display

• Display Type: 10.1” Diagonal TFT Color LCD.  Contact us for additional display sizes.
• Resolution: 1280 x 800 WXGA, 18-bit Color
• Orientation: Landscape
• Luminance: Typical 425 (cd/m²)
• Viewing Angles: 85/85 left/right, 85/85 up/down
• Backlight: LED
• Manufacturer: Innolux

Get detailed panel specifications.

Touchscreen

• Touch Driver: Standard Linux Driver
• Type: 4-Wire Analog Rugged Resistive
• Durability: Over 20 Million Touches
• PCAP, cover glass and industrial options are available. Contact us for details.

Dimensions

• Size: 9.583” W x 6.85” H x 0.794” D
• Weight: 800 grams

Environmental/Regulatory

• Operating Temperature: 0 to 70° C. The LCD primarily limits this specification.
• Storage Temperature: -30 to 80° C.
• Humidity: Max 90%RH at 60° C; No Condensation.
• RoHS 2 Compliant: Yes

Power Requirements

• Input Power: 11-13V 1.2mA Max
• Power Consumption: The G3BNG module requires an 11-13V DC input. At boot-up, it uses a maximum of 1.2mA Max with no external devices attached. The module can also supply +5V to other external devices on some of the connectors, and all such supplies need to be considered in the power budget. The input power connector can handle 3A of nominal input. Power consumption increases when external I/O is used.
• Grounding: The board mounting holes are connected to the digital ground. These must be connected to the chassis ground directly or through a transient protection diode for ESD.

Mounting Options

For 10.1″ modules, Reach Technology provides mounting brackets. Visit Mounting Options for more information.

Developer Images

Several options exist for G3 modules. Find more information in the Development Process Installation section of the G3 Manual .

SDK Images

Release	Description	Download
1.1.1	Yocto Dunfell SDK 3.1.8 + Qt5 5.15.2	NXP Qt5 SDK 1.1.1
1.1.1	Yocto Dunfell SDK 3.1.8 + GTK+ 3.24.14	NXP GTK+ SDK 1.1.1

Developer VM Images

Release	GUI	Description	Download
1.1.1	Qt5	Yocto Dunfell SDK 3.1.8 + Qt5 5.15.2	NXP Qt5 Dev VM 1.1.1

Bootable Images

Find Boot Setup instructions in the G3 Manual .

Controller	Processor	Type	Release	Description	Download
G3BNG	NXP i.MX6DL Processor	SD Card Images	1.1.1	Initial Release	G3BNG SD Qt5 1.1.1
G3BNG	NXP i.MX6DL Processor	SD Card Images	1.1.1	Initial Release	G3BNG SD GTK 1.1.1
G3BNG	NXP i.MX6DL Processor	eMMC Images	1.1.1	Initial Release	G3BNG SD Qt5 1.1.1
G3BNG	NXP i.MX6DL Processor	eMMC Images	1.1.1	Initial Release	G3BNG SD GTK 1.1.1

Quickly get up and running with a list of what comes in a development kit, setup instructions, and a demo to verify functionality in our G3 Quick Start Guide. On that page, you’ll also find our G3 Manual  for more information on how to create applications for G3 modules.
